80W Smart Integrated Solar Street Light: PIR Human Body Sensor + APP Remote Control, Outdoor High-Intensity Illumination Benchmark

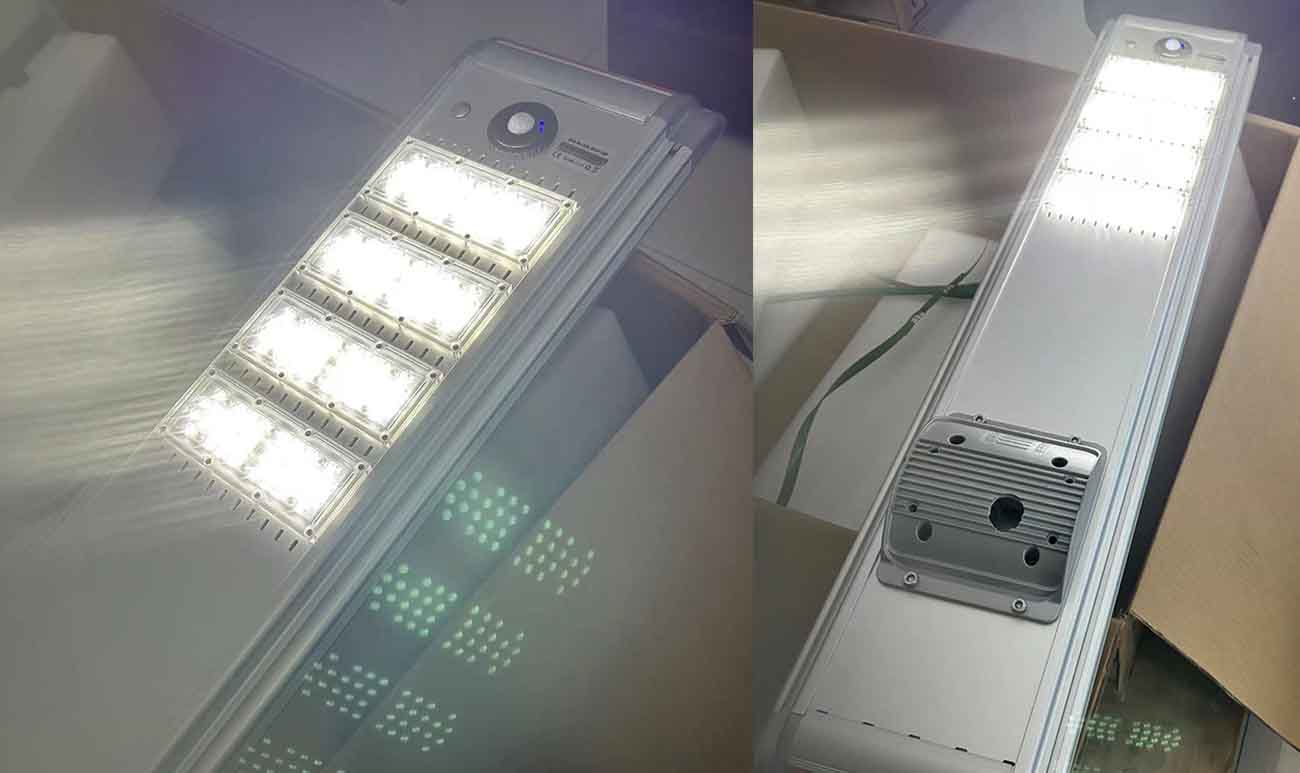

The 80W LED intelligent integrated solar outdoor street light combines high-power lighting, precise PIR sensing, and remote control via a mobile app. Its integrated design eliminates wiring hassles, providing zero-electricity green power.

With its superior brightness, long battery life, and intelligent adaptability, it has become the preferred solution for outdoor lighting and security in various scenarios such as roads, parks, and courtyards, completely revolutionizing the practicality and convenience of outdoor lighting.

(1) Core Performance: High-Power, High-Intensity Light Output, Long Battery Life and Durability

1. High-Brightness Lighting: Wide Coverage + High-Quality, Brightness Comparable to Professional Streetlights

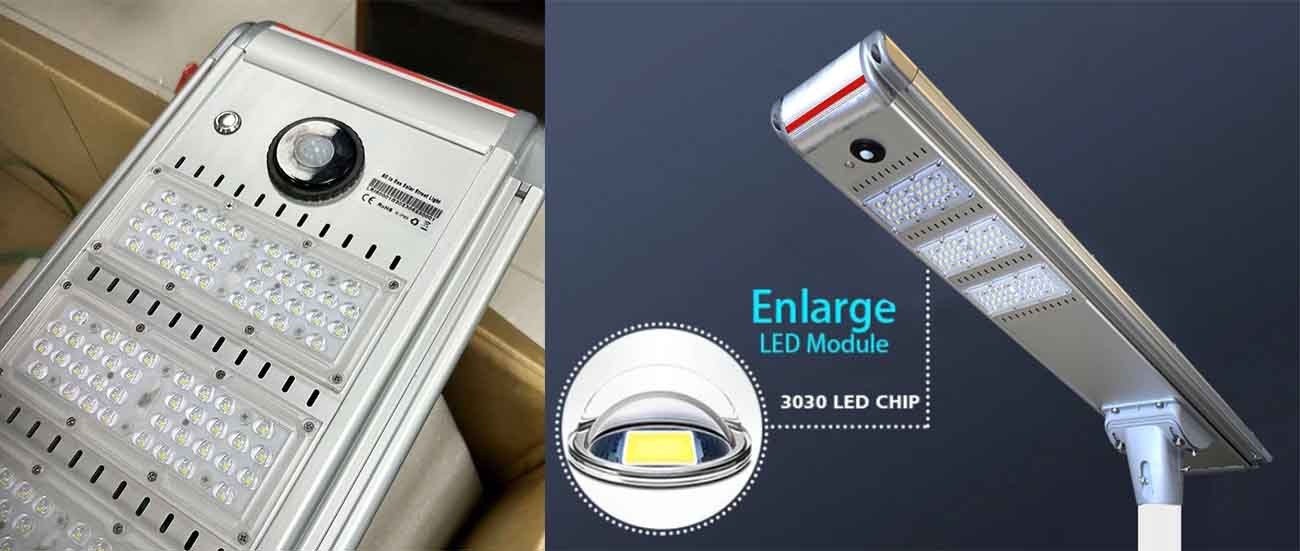

Equipped with an 80W high-power LED light source, using high-quality LED beads such as Philips 5050 or SMD 5730 (some models have 96-205 LED beads), the luminous efficacy reaches 120-150lm/W, and the total luminous flux can reach 8000-12800 lumens. The light penetration is strong and the distribution is uniform, far exceeding traditional lighting equipment.

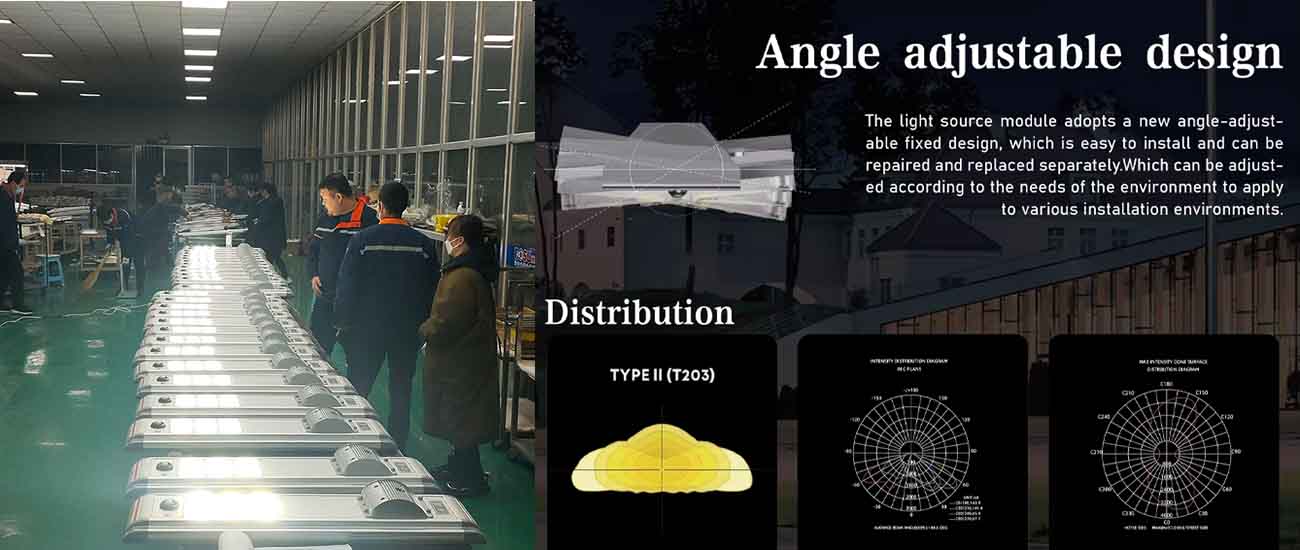

Equipped with patented optical lenses and a scientific light distribution design, the beam angle covers an ultra-wide range of 80°×150° to 155°.

With a recommended installation height of 7-12 meters, a single lamp can cover a radius of 18-25 meters, and the installation spacing can be extended to 25-30 meters, effectively covering open areas such as rural roads, large parking lots, and main roads in industrial parks.

The color temperature supports multiple adjustments from 3000K warm white to 6500K daylight white, with a color rendering index (RA) > 80, providing high light reproduction and a clear and bright visual experience for both nighttime traffic and security monitoring.

The LED chip has a lifespan of over 100,000 hours, exhibits slow light decay, and maintains stable brightness even after long-term use.

(2) Energy Storage System: High-efficiency charging + long-lasting battery life, worry-free on cloudy and rainy days. Equipped with high-conversion-rate solar panels, the mainstream configuration is a 120W monocrystalline silicon or 80W shingled monocrystalline silicon photovoltaic panel, with a photoelectric conversion efficiency of up to 30%.

Combined with an MPPT intelligent charging controller, it can accurately track the trajectory of sunlight, improving charging efficiency by more than 30% compared to ordinary controllers. Under sufficient sunlight, it can be fully charged in 6-8 hours. It has a built-in large-capacity lithium iron phosphate battery (common specifications 12.8V/36Ah or 3.2V/15Ah), with excellent safety performance, over 2500 charge/discharge cycles, and a lifespan of 8-10 years.

In full charge, it can support 100% full power lighting for 10-12 hours, and in energy-saving mode, it can last for over 40 hours. Even after 3-5 consecutive cloudy or rainy days, it can still maintain basic operation.

(3) Robust Protection: All-weather Adaptability, Maximum Durability

The lamp housing is made of die-cast aluminum material, treated with anti-corrosion and anti-rust treatment, with excellent heat dissipation performance, effectively extending the service life of internal components.

The protection level reaches IP65 standard, easily resisting the corrosion of harsh environments such as heavy rain, sandstorms, and salt spray. Some models have passed IEC, CE, and other certifications, adapting to a wide temperature range of -25℃ to 65℃. Whether in the harsh winter of the north or the scorching heat of the south, it can operate stably, adapting to various climatic conditions and outdoor scenarios.

(4) Intelligent Control: PIR Sensing + APP Remote Control, Energy Saving and Convenient

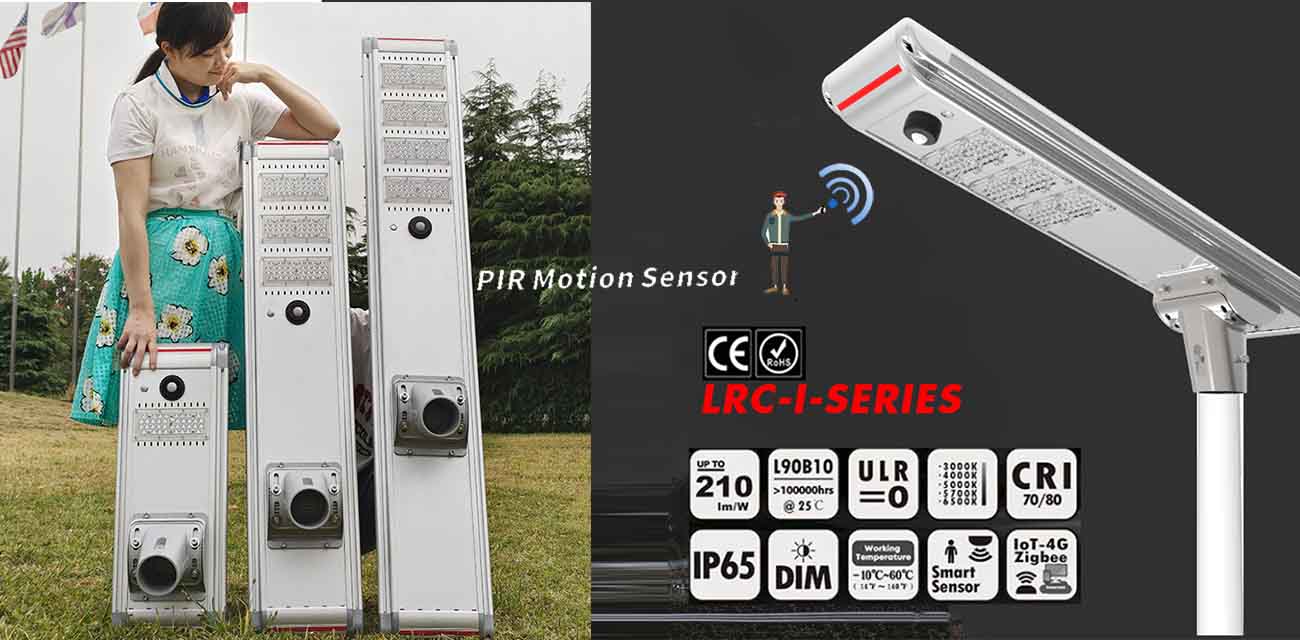

1. PIR Human Body Sensing: Precise Triggering, Intelligent Energy Saving

Built-in high-sensitivity passive infrared (PIR) pyroelectric sensor, the core of which is to detect changes in 8-14μm infrared radiation emitted by humans or warm-blooded animals to determine motion signals.

Combined with Fresnel lens focusing to enhance sensitivity, the detection angle can reach 120°-360°, with a maximum detection distance exceeding 14 meters. When human or vehicle movement is detected, the lights automatically switch to 100% full-power illumination; after 30 seconds in unattended mode (duration customizable), the brightness automatically drops to 30% energy-saving level, ensuring lighting needs in core areas while significantly reducing energy consumption, improving energy efficiency by over 60%. It also supports light-controlled automatic start/stop, automatically turning off the lights and charging at full power during the day when there is sufficient light, and automatically starting the working mode at night, requiring no manual intervention throughout, saving time and energy.

2. Remote Control via Mobile App: Full-Function Control, Flexible and Convenient

Supports connection to lighting fixtures via a dedicated app (compatible with Wi-Fi/Bluetooth or LoRa, ZigBee wireless communication) for remote control across all scenarios—no matter where you are, you can turn lights on and off, adjust brightness levels, and set timed lighting periods (e.g., full brightness from 18:00-24:00, energy-saving brightness from 00:00-06:00).

You can also switch between preset modes such as "sensor mode," "constant light mode," and "timed mode" with a single click.

The app has a built-in intelligent management system that allows real-time monitoring of each light fixture's remaining battery power, charging status, and operating mode, facilitating routine maintenance and troubleshooting. Some models support multi-light linkage; one app can control over 200 lights. Equipped with a DTU centralized controller and RTU terminal, it is suitable for unified management in batch installation scenarios such as residential areas, parks, and rural roads.

(5) Installation and Adaptation: Wiring-free + Multi-scenario Application, Practical and Worry-free

1. Convenient Installation: Integrated Design, Saving Time and Effort

Adopting a four-in-one integrated structure of solar panel, light source, battery, and controller, it eliminates the need for additional power and signal cables, significantly saving construction costs and time. Supports multiple installation methods including pole mounting (compatible with 60-70mm diameter light poles), wall mounting, and ceiling mounting. The light fixture bracket is flexibly adjustable in angle. During installation, simply face the solar panel south (or optimize the light angle according to the local latitude). Two people can complete the installation of a single light in 20 minutes; no professional construction team is required, and individuals can easily operate it.

2. Full-Scene Adaptability: Covering Private and Public Areas

Private Scenarios: Villa courtyards, gardens, perimeter security, private driveways, providing reliable lighting for nighttime activities and property security;

Public Scenarios: Community roads, park trails, parking lots, fitness areas, scenic boardwalks, playgrounds, meeting basic lighting and security needs in public areas;

Special Scenarios: Rural roads, off-grid lighting in remote mountainous areas, temporary lighting at construction sites, outdoor storage areas, adaptable to areas without power grid coverage or where wiring is inconvenient.

(6) Product Advantages and After-Sales Service

Core Advantages

* **Dual Strength and Brightness:** 80W high power output with 8000-10000 lumens, providing wide lighting coverage and strong penetration.

* **Intelligent Dual Control for Convenience:** PIR sensor automatic energy saving + APP remote full-function control, balancing convenience and energy efficiency.

* **Easy Installation and Maintenance:** Integrated, wiring-free design for efficient installation; long battery and LED lifespan; low maintenance costs.

* **Green and Economical:** Solar power with zero electricity costs; environmentally friendly and safe lithium iron phosphate battery, aligning with low-carbon principles.

* **Outstanding Durability:** IP65 high protection + wide temperature adaptability, suitable for various harsh outdoor environments.

After-Sales Service

* **3-Year Warranty:** Covering the main body of the lamp, solar panel, battery, controller, and other core components. Under normal use, frequent maintenance is unnecessary; only periodic cleaning of the solar panel surface is required to ensure charging efficiency, providing peace of mind for long-term use. The product has passed ISO, RoHS, and other certifications, ensuring quality and safety.

This 80W smart integrated solar street light perfectly balances lighting effect, operating cost and convenience with its core advantages of "strong light, long battery life, intelligent control and easy installation".

Whether it is a home outdoor lighting upgrade or a small-scale engineering lighting renovation, it is an excellent choice that combines practicality and cost-effectiveness.
